GROC (Getting Rid Of Cursors) part two: Cursor Resources

This is the second part of the "GROC-files". I will focus on the resource consumption of cursors, especially tempdb space and locks. The variable that holds the cursor, and the FETCH INTO-variables also take some space, but I'm going to ignore that here. The following T-SQL script contains switches for most of the relevant factors:
  • cursor type,
  • cursor locking behavior,
  • locking hints in the query,
  • transaction isolation level, and
  • cursor close on commit setting.

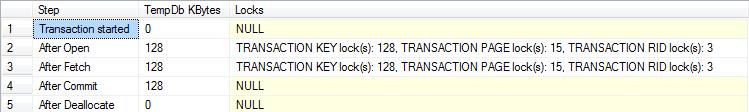

If you run the script, it will return a resultset containing the resource consumption per step, like this:



Here are a couple of observations from several runs with different settings:
  • Static and keyset cursors can consume a considerable amount of tempdb memory.
  • Dynamic cursors don't use tempdb.
  • In higher transaction isolation levels, keyset cursors can take a lot of locks, and for a long period.
  • In higher transaction isolation levels, static cursors can take a lot of locks, and for a long period. [They copy everything to the tempdb and lock it in the user db !].
  • FOR UPDATE apparently has no impact on resources.
  • Cursor owned locks only appear with the SCROLL_LOCKS setting. All other locks belong to the transaction.
  • If the connection option to keep cursors open on a commit is set on, all locks will be kept across a commit or rollback operation.
  • A WITH (NOLOCK) hint avoids transaction as well as cursor owned locks. [So it actually overrides the SCROLL_LOCKS setting, which might no be what you wanted !]
Anyway, some of these observations confirm (again) that cursors should be avoided in most scenarios: they use more resources than necessary and are not easily controllable.

Some final advice:
  • Select as few as possible rows and columns in the cursor resultset (this advice actually applies to all possible resultsets in batches/transactions),
  • whenever possible, prefer dynamic cursors over static ones, and
  • explicitly set CURSOR_CLOSE_ON_COMMIT to ON in your session.
Here's the full test script:

/*************************/
/*                       */
/* Cursor Resources Demo */
/*                       */
/*************************/

USE AdventureWorks
GO

/***************/
/* Preparation */
/***************/

CREATE SCHEMA DockOfTheBay
GO

CREATE FUNCTION DockOfTheBay.ufn_TempDb_Internal_Objects
(
    @Session_id AS int
)
RETURNS int
AS
BEGIN
    --
    -- Returns the number of KBytes allocated to tempdb internal objects for a session
    --
    DECLARE @Result int

    -- rem: Caching and Deferred Drop operations may influence counters
    SELECT @Result = SUM((internal_objects_alloc_page_count - internal_objects_dealloc_page_count)) * 8
      FROM  tempdb.sys.dm_db_task_space_usage
     WHERE  session_id = @Session_id
       AND database_id = db_id('tempdb')

    RETURN @Result
END
GO

CREATE FUNCTION DockOfTheBay.ufn_Locks
(
    @Session_id AS int
)
RETURNS NVARCHAR(200)
AS
BEGIN
    --
    -- Returns the number of locks per type and owner for a session, as a comma-separated list
    --
    DECLARE @Result NVARCHAR(200)

    ;WITH Locks AS
    (
        SELECT resource_type AS [Type]
              ,CONVERT(NVARCHAR(03), COUNT(*)) AS [Number]
              ,request_owner_type AS [Owner]
          FROM sys.dm_tran_locks
         WHERE request_session_id = @Session_id
           AND resource_type IN ('ROW', 'PAGE', 'RID', 'KEY')
         GROUP BY resource_type, request_owner_type
    )
    SELECT @Result = COALESCE(@Result + ', ', '') + [Owner] + ' ' + [Type] + ' lock(s): ' + [Number]
    FROM Locks

    RETURN @Result

END
GO

/*************/
/* Execution */
/*************/

/* Switch option ON and OFF: */
SET CURSOR_CLOSE_ON_COMMIT /* ON */ OFF

/* Uncomment ONE of the following options at a time: */
SET TRANSACTION ISOLATION LEVEL SERIALIZABLE
-- SET TRANSACTION ISOLATION LEVEL READ COMMITTED

BEGIN TRANSACTION

-- Table Variable to hold the measurement results
DECLARE @Measurements TABLE
(
    [Step] NVARCHAR(50)
   ,[TempDb KBytes] INT
   ,[Locks] NVARCHAR(200)
)

INSERT @Measurements
SELECT 'Transaction started'
      ,DockOfTheBay.ufn_TempDb_Internal_Objects(@@spid)
      ,DockOfTheBay.ufn_Locks(@@spid)

-- Dummy variable for the FETCH operation
DECLARE @temp SQL_VARIANT

-- Declare and open a keyset-driven cursor.
DECLARE c1 CURSOR
    /* Please uncomment ONE of the following options at a time: */
    -- DYNAMIC
    DYNAMIC SCROLL_LOCKS
    -- KEYSET
    -- STATIC
FOR
    SELECT *
      FROM Production.ProductModel
      /* Uncomment to see the impact: */
      -- WITH (NOLOCK)
     WHERE ProductModelID > 1
     /* Uncomment to see the impact: */
     -- FOR UPDATE

OPEN c1

INSERT @Measurements
SELECT 'After Open' As [Step]
      ,DockOfTheBay.ufn_TempDb_Internal_Objects(@@spid) AS [TempDb KBytes]
      ,DockOfTheBay.ufn_Locks(@@spid) AS [Locks]

FETCH NEXT FROM c1 INTO @temp, @temp, @temp, @temp, @temp, @temp

INSERT @Measurements
SELECT 'After Fetch' As [Step]
      ,DockOfTheBay.ufn_TempDb_Internal_Objects(@@spid) AS [TempDb KBytes]
      ,DockOfTheBay.ufn_Locks(@@spid) AS [Locks]

COMMIT TRANSACTION

INSERT @Measurements
SELECT 'After Commit' As [Step]
      ,DockOfTheBay.ufn_TempDb_Internal_Objects(@@spid) AS [TempDb KBytes]
      ,DockOfTheBay.ufn_Locks(@@spid) AS [Locks]

-- Close and deallocate the cursor.
CLOSE c1
DEALLOCATE c1

INSERT @Measurements
SELECT 'After Deallocate' As [Step]
      ,DockOfTheBay.ufn_TempDb_Internal_Objects(@@spid) AS [TempDb KBytes]
      ,DockOfTheBay.ufn_Locks(@@spid) AS [Locks]

-- Display results
SELECT * FROM @Measurements

GO
/***********/
/* Cleanup */
/***********/

DROP FUNCTION DockOfTheBay.ufn_TempDb_Internal_Objects
DROP FUNCTION DockOfTheBay.ufn_Locks
DROP SCHEMA DockOfTheBay
GO
